MXL Microphones Debut Revelation II Tube Mic

MXL Microphones has released the successor to the MXL Revelation, one of MXL’s most respected mics. The new Revelation II microphone employs the latest design and manufacturing technologies to offer the same clarity and versatility of the classic MXL Revelation, but at a fraction of the price.

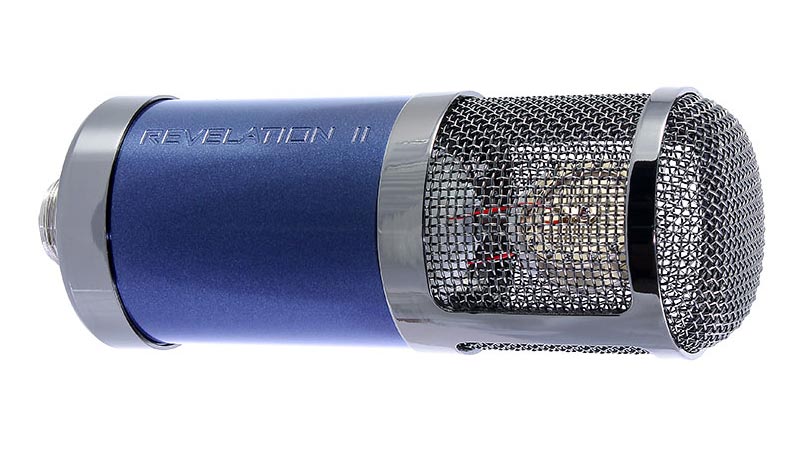

mxl-revelation-II-futuremusic

The MXL claims the Revelation II will offer the warmth and intimacy of a quality tube microphone, but with extended punch for balanced recording. A dual gold-sputtered, 6-micron diaphragm and hand-selected EF86 pentode tube provide warm, rich and transparent sound. The Revelation II’s polar pattern can be controllable by a variable pattern control knob. Trevor Fedele, Director of Sales at MXL Microphones, reveals that the “new Revelation II captures the performance and versatility of the original Revelation, but will be more accessible to artists at a lower price point.”

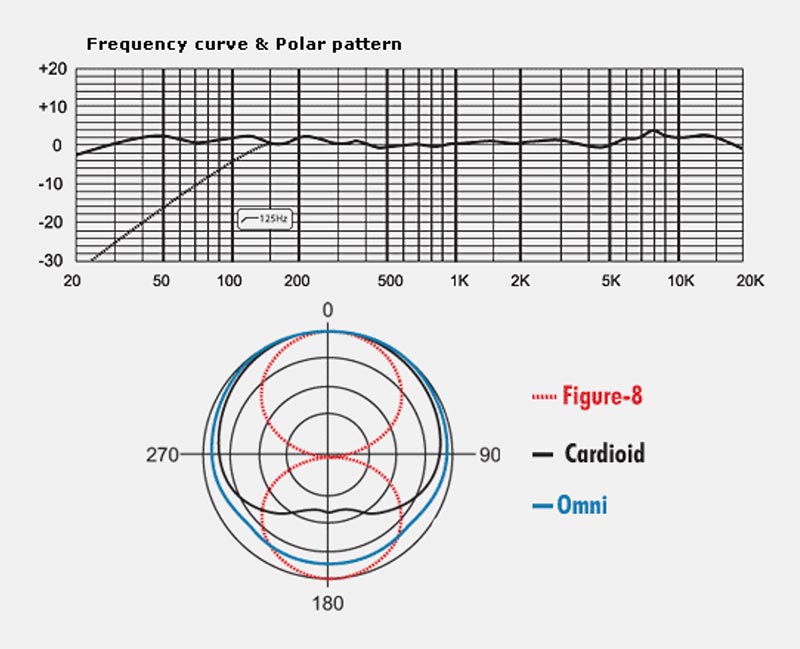

MXL Microphones MXL Revelation II tube microphone specs

MXL Revelation II Features and Specs:

» Flagship tube microphone
» Variable polar pattern selection
» EF86 Pentode tube
» Natural frequency response attributes to classic sound
» Mogami cable and wiring for exceptional audio fidelity
» Type: Variable Pattern Tube Condenser Microphone
» Diaphragm: Dual gold-sputtered, 6 micron diaphragm
» Frequency Response: 20 Hz – 20 kHz
» Polar Pattern: Continuously variable
» Sensitivity: -40 dB re 1 V/Pa
» Output Impedance: 140 ohms
» Attenuation Switch: 0 dB, -10 dB
» High Pass Filter: 12 dB/octave @ 125Hz
» Equivalent Noise: -18 dB (A-weighted IEC 651)
» S/N Ratio: 76 dB
» Max SPL for .5% THD: 138 dB SPL
» Power Requirements: Revelation Power Supply Unit 110/220 VAC, 50/60Hz
» Size: 7 1/2″ X 2 1/2″/190mm x 63.5mm (mic only)
» Weight: 2 lbs / 907g (mic only)
» Metal Finish: Dark Violet and Black Chrome

MXL Microphones has released the MXL Revelation II tube microphone

MXL Microphones Revelation II will cost $499.99 when it becomes available this spring.
